Fiber Optic Policshing Machine

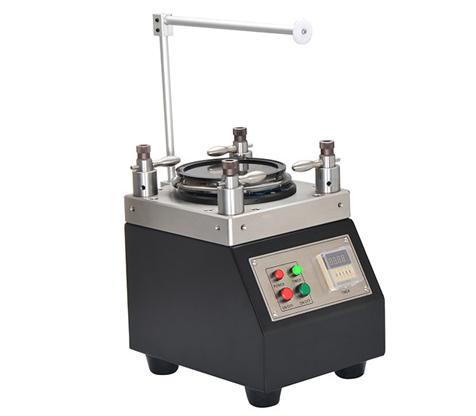

With high speed rotation & revolution method, this Square Pressure Fiber Optic Polishing Machine can polish 18~40 standard fiber optic connector at one time. The square is pressurized by the spring, making the operation simple with high flexibility.

The pass rate of the first grinding process is above 95%, and the lifespan of grinding discs are extended by 20% compared to the previous generation.

High output and efficiency. Up to 48 single core ferrules or connectors can be processed at the same time. (The default configuration is about 18 to 24)

Support FC, SC, ST, LC, MU, SMA, D4, LX.5, E-2000(3000), FDDI, ESCON, MPO/MTP, MT-RJ, DIN, other PC, APC fiber connectors and fiber array, fiber stub, capillary fiber, PLC chips and other special connectors, etc. by only replacing grinding jig.

The operation of this machine is simple and the maintenance is convenient.
No specialized training is needed before it goes into production.

Item： Techinical Characteristics
Pressure Range： 0~4.8kg
Shake： <10μ(measured Value<6μ)
Parallel Misalignment： <10μ(measured Value<8μ)
Rotation Rate： 80±2rpm
Precession Rate： 1.25±0.05rpm
Time Adjustment： 0.1s~9990h
Operation Temperature： 0℃~+40℃
Power Supply ： AC 220V/50Hz 100W
Dimension： 255mm×220mm×275mm
Weight： 25Kg
